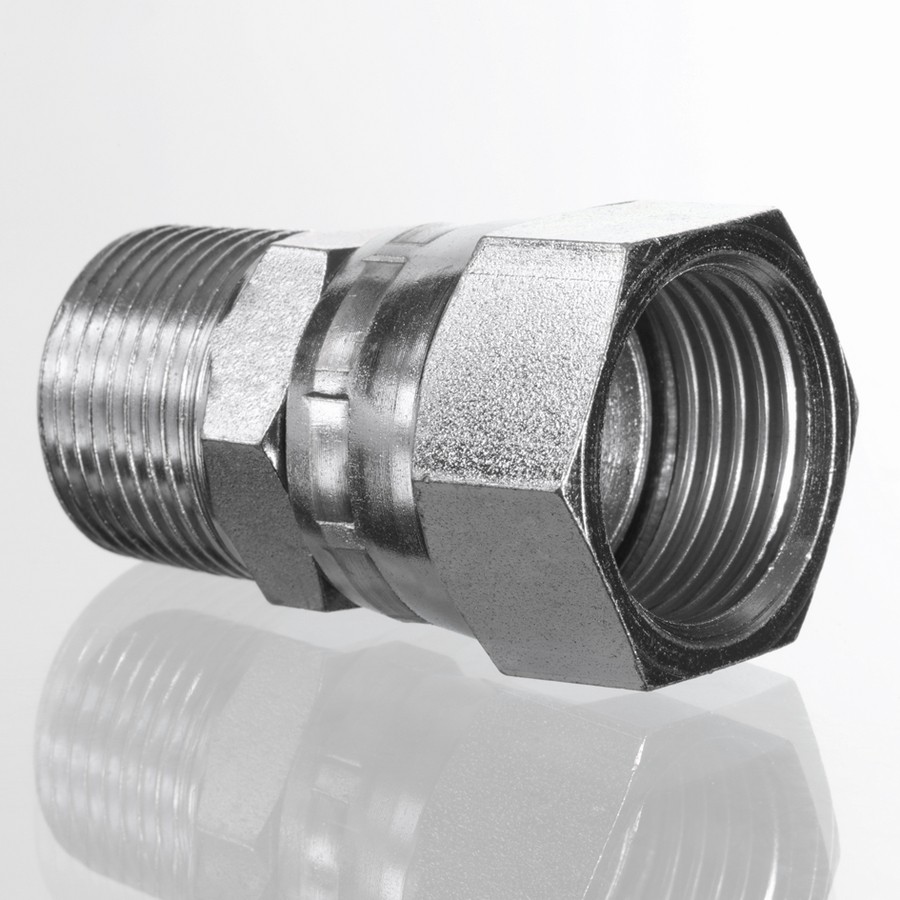

Прямой переходник JIC (гайка) — NPT (штуцер)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-2 / SAE J 514 Соединение 1: Наружная резьба NPT Соединение 2: Гаечная резьба UN/UNF Форма уплотнения 1: Резьбовое уплотнение Форма уплотнения 2: Внутренний конус 74°

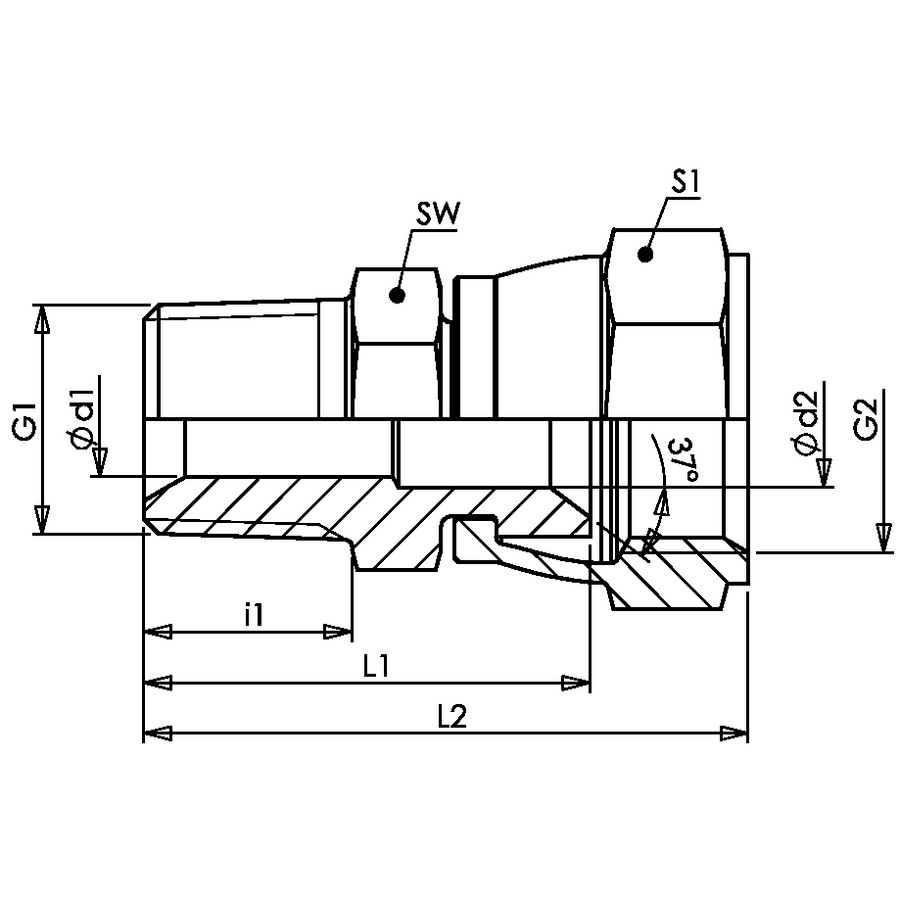

Code	Ø d1	Ø d2	G1	G2	i1	L1	L2	S1	S1	SW
AD.JIC(F)7/16.NPT(M)1/8	4	4	1/8" -27 NPT	7/16" -20 UNF	10.1	23.6	33.1	14	14	11
AD.JIC(F)1/2.NPT(M)1/8	4.4	4.4	1/8" -27 NPT	1/2" -20 UNF	10.1	24.8	34.3	17	17	12
AD.JIC(F)9/16.NPT(M)1/8	4.5	6	1/8" -27 NPT	9/16" -18 UNF	10.1	25.9	35.9	19	14	14
AD.JIC(F)7/16.NPT(M)1/4	5.6	4	1/4" -18 NPT	7/16" -20 UNF	15	29.5	39	14	14	14
AD.JIC(F)1/2.NPT(M)1/4	5.6	4.4	1/4" -18 NPT	1/2" -20 UNF	15	30.7	40.2	17	16	14
AD.JIC(F)9/16.NPT(M)1/4	5.6	5.6	1/4" -18 NPT	9/16" -18 UNF	15	30.8	40.8	19	17	14
AD.JIC(F)3/4.NPT(M)1/4	5.6	9.9	1/4" -18 NPT	3/4" -16 UNF	15	32.4	43.9	24	22	19
AD.JIC(F)9/16.NPT(M)3/8	8.4	6	3/8" -18 NPT	9/16" -18 UNF	15.2	32.6	44.1	24	17	19
AD.JIC(F)3/4.NPT(M)3/8	8.4	9.9	3/8" -18 NPT	3/4" -16 UNF	15.2	32.6	44.1	24	22	19
AD.JIC(F)7/8.NPT(M)3/8	8.4	12.3	3/8" -18 NPT	7/8" -14 UNF	15.2	35.3	49	27	27	22
AD.JIC(F)9/16.NPT(M)1/2	11.9	6	1/2" -14 NPT	9/16" -18 UNF	19.9	37.2	47.2	19	19	22
AD.JIC(F)3/4.NPT(M)1/2	11.9	9.9	1/2" -14 NPT	3/4" -16 UNF	19.9	38.8	50.3	22	22	22
AD.JIC(F)7/8.NPT(M)1/2	11.9	11.9	1/2" -14 NPT	7/8" -14 UNF	19.9	40	53.7	27	25	22
AD.JIC(F)1-1/16.NPT(M)1/2	11.9	15.5	1/2" -14 NPT	1.1/16" -12 UN	19.9	42	56.9	32	32	27
AD.JIC(F)3/4.NPT(M)3/4	16.5	9.9	3/4" -14 NPT	3/4" -16 UNF	20.2	40.6	52.1	24	22	27
AD.JIC(F)7/8.NPT(M)3/4	16.5	12.3	3/4" -14 NPT	7/8" -14 UNF	20.2	41.8	55.5	27	27	27
AD.JIC(F)1-1/16.NPT(M)3/4	15.5	15.5	3/4" -14 NPT	1.1/16" -12 UN	20.2	42.3	57.2	32	32	27
AD.JIC(F)1-3/16.NPT(M)3/4	16.5	16.5	3/4" -14 NPT	1.3/16" -12 UN	20.2	42.4	58.9	36	32	32
AD.JIC(F)1-5/16.NPT(M)3/4	16.5	21.5	3/4" -14 NPT	1.5/16" -12 UN	20.2	43.8	60.6	41	38	32
AD.JIC(F)1-5/16.NPT(M)1	21.1	21.1	1" -11.5 NPT	1.5/16" -12 UN	25.1	48.7	65.5	41	38	36
AD.JIC(F)1-5/8.NPT(M)1	21.1	27.5	1" -11.5 NPT	1.5/8" -12 UN	25.1	51.6	67.9	50	50	41
AD.JIC(F)1-5/8.NPT(M)1-1/4	27.5	27.5	1.1/4" -11.5 NPT	1.5/8" -12 UN	25.7	53.2	69.5	50	50	46
AD.JIC(F)1-7/8.NPT(M)1-1/2	33.5	33.5	1.1/2" -11.5 NPT	1.7/8" -12 UN	26.1	55.9	75.3	60	58	50
