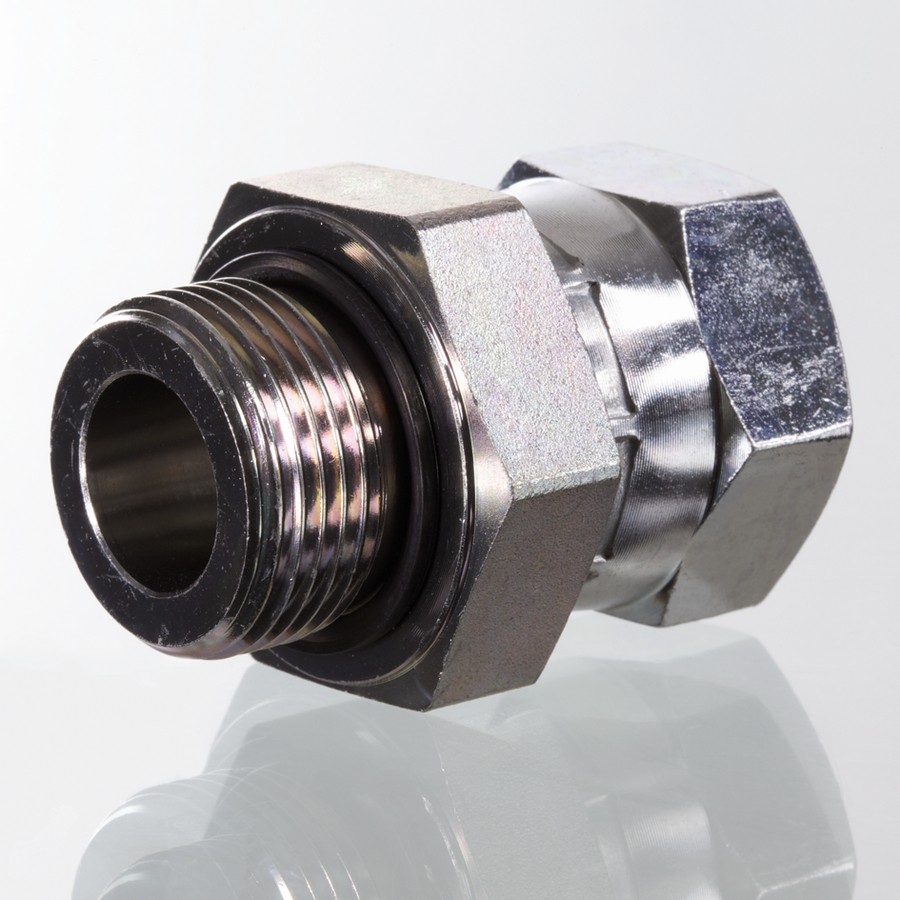

Прямой переходник JIC (гайка) — BSP (штуцер с ED)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-2 Норма соединения 1: ISO 1179-2 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Гаечная резьба UN/UNF Форма уплотнения 1: Форма E Форма уплотнения 2: Внутренний конус 74°

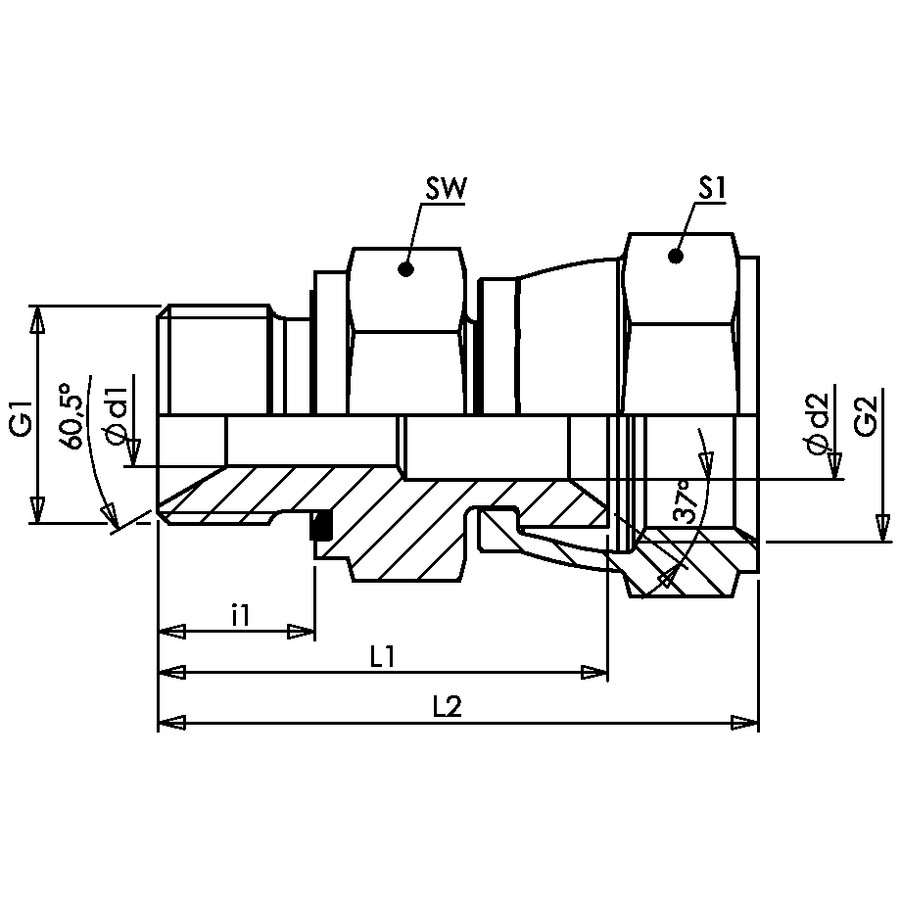

Code	G1	G2	i1	L1	L2	S1	SW	Ø d1	Ø d2
AD.JIC(F)7/16.BSP(M)1/8.ED	G 1/8" -28	7/16" -20 UNF	8.0	22.5	32.0	14	14	3.5	3.5
AD.JIC(F)1/2.BSP(M)1/8.ED	G 1/8" -28	1/2" -20 UNF	8.0	23.7	33.2	17	14	3.5	3.5
AD.JIC(F)1/2.BSP(M)1/4.ED	G 1/4" -19	1/2" -20 UNF	12.0	31.7	41.2	17	19	4.4	4.4
AD.JIC(F)9/16.BSP(M)1/4.ED	G 1/4" -19	9/16" -18 UNF	12.0	31.8	41.8	19	19	4.7	4.7
AD.JIC(F)3/4.BSP(M)1/4.ED	G 1/4" -19	3/4" -16 UNF	12.0	33.4	44.9	24	19	4.7	9.9
AD.JIC(F)9/16.BSP(M)3/8.ED	G 3/8" -19	9/16" -18 UNF	12.0	32.8	42.8	19	22	7.9	6.0
AD.JIC(F)3/4.BSP(M)3/8.ED	G 3/8" -19	3/4" -16 UNF	12.0	34.4	45.9	24	22	7.9	9.9
AD.JIC(F)7/8.BSP(M)3/8.ED	G 3/8" -19	7/8" -14 UNF	12.0	35.6	49.3	27	22	7.9	12.3
AD.JIC(F)3/4.BSP(M)1/2.ED	G 1/2" -14	3/4" -16 UNF	14.0	37.4	48.9	24	27	9.9	9.9
AD.JIC(F)7/8.BSP(M)1/2.ED	G 1/2" -14	7/8" -14 UNF	14.0	38.6	52.3	27	27	11.1	11.1
AD.JIC(F)1-1/16.BSP(M)1/2.ED	G 1/2" -14	1.1/16" -12 UN	14.0	39.1	54.0	32	27	11.1	15.5
AD.JIC(F)1-1/16.BSP(M)3/4.ED	G 3/4" -14	1.1/16" -12 UN	16.0	41.6	56.5	32	32	15.5	15.5
AD.JIC(F)1-5/16.BSP(M)3/4.ED	G 3/4" -14	1.5/16" -12 UN	16.0	42.6	59.4	41	32	16.7	21.5
AD.JIC(F)1-5/16.BSP(M)1.ED	G 1" -11	1.5/16" -12 UN	18.0	47.6	64.4	41	41	21.5	21.5
AD.JIC(F)1-5/8.BSP(M)1.ED	G 1" -11	1.5/8" -12 UN	18.0	49.5	65.8	50	41	22.2	27.5
AD.JIC(F)1-5/8.BSP(M)1-1/4.ED	G 1.1/4" -11	1.5/8" -12 UN	20.0	51.5	67.8	50	50	27.5	27.5
AD.JIC(F)1-7/8.BSP(M)1-1/4.ED	G 1.1/4" -11	1.7/8" -12 UN	20.0	53.3	72.7	60	50	28.6	33.5
AD.JIC(F)1-7/8.BSP(M)1-1/2.ED	G 1.1/2" -11	1.7/8" -12 UN	22.0	55.3	74.7	60	55	33.3	33.3
